(click any image for a larger
view)
Eight 42” wide front drive belt
feeders to be installed under
eight 150 ton capacity clay
storage silos. |
|
|
 |

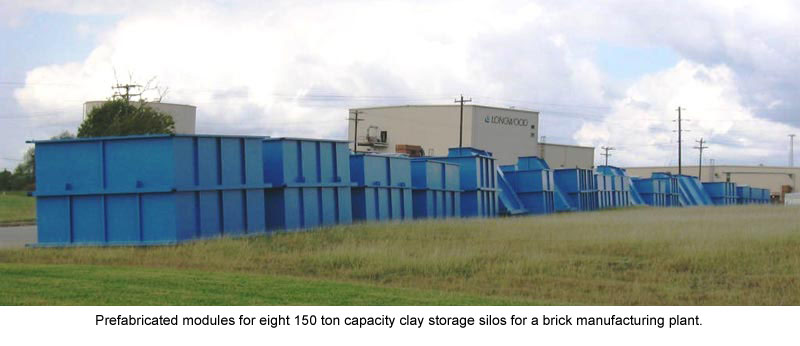

Prefabricated modules for eight
150 ton capacity clay storage
silos for a brick manufacturing
plant. |
|
|
|
|

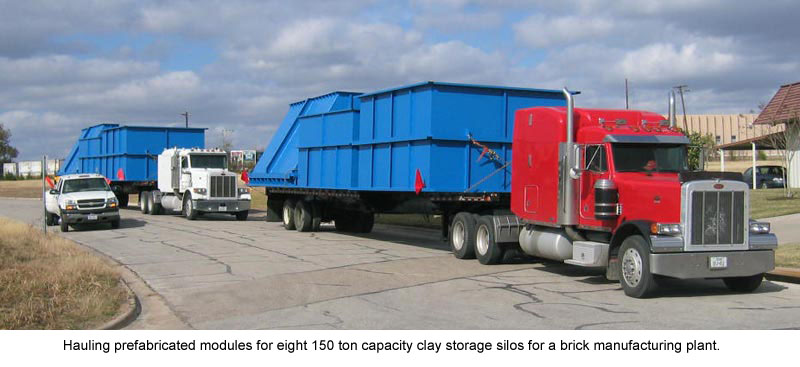

Hauling prefabricated modules
for eight 150 ton capacity clay
storage silos for a brick
manufacturing plant. |
|
|
|
|

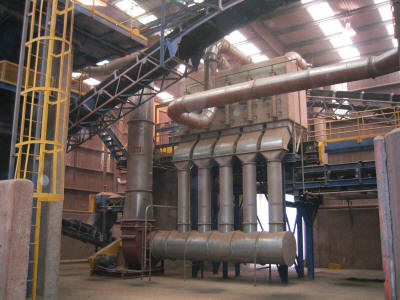

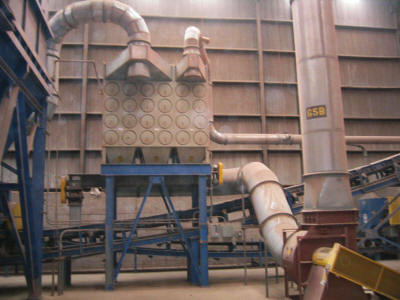

Dust collection system for a 150
ton per hour clay grinding room. |
|
|
|
|

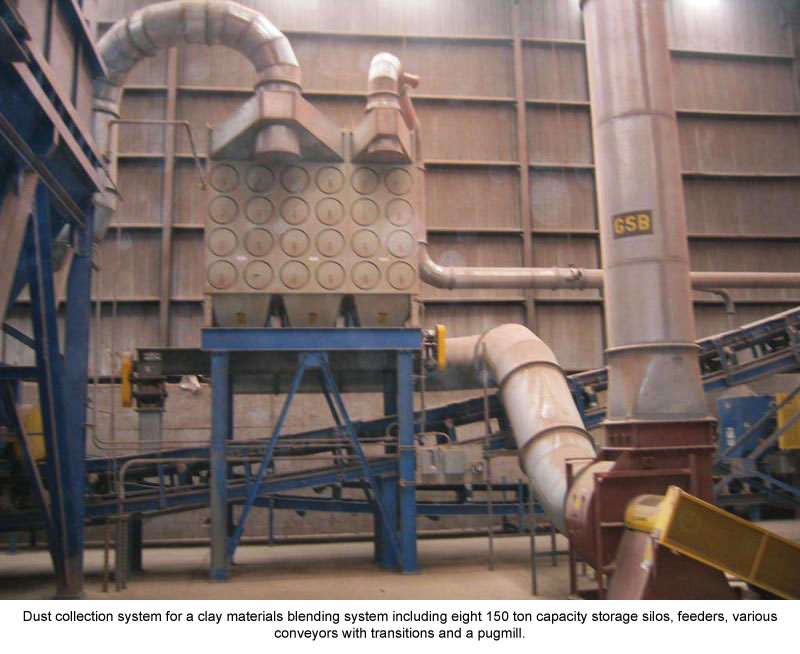

Dust collection system for a
clay materials blending system
including eight 150 ton capacity
storage silos, feeders, various
conveyors with transitions and a
pugmill. |
|
|
|
|
Eight 150 ton capacity clay
product storage silos with
integral 42” wide belt feeders
feeding a gathering conveyor. |
|
|
|
|
Back view of eight 150 ton
capacity clay product storage
silos with integral 42” wide
belt feeders feeding a gathering
conveyor. |
|
|
|
|

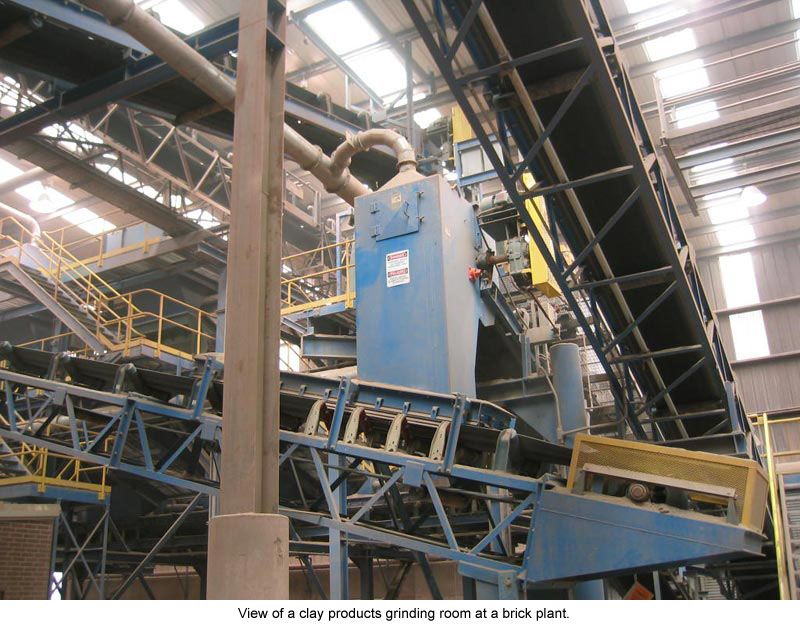

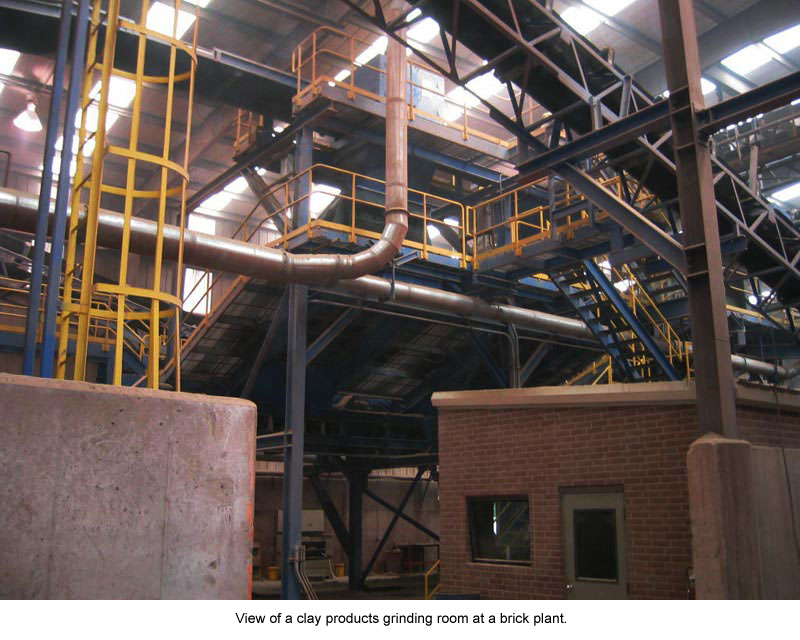

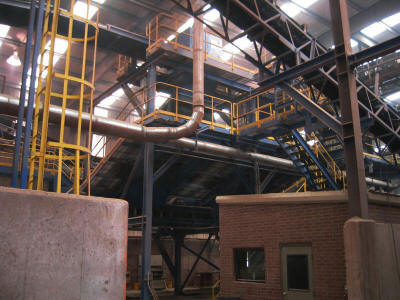

View of a clay products grinding
room at a brick plant. |
|
|
|
|

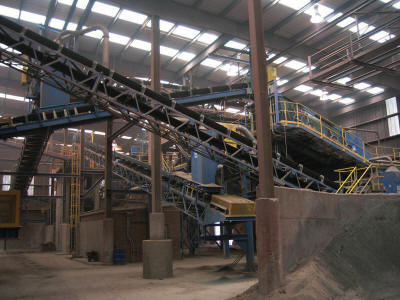

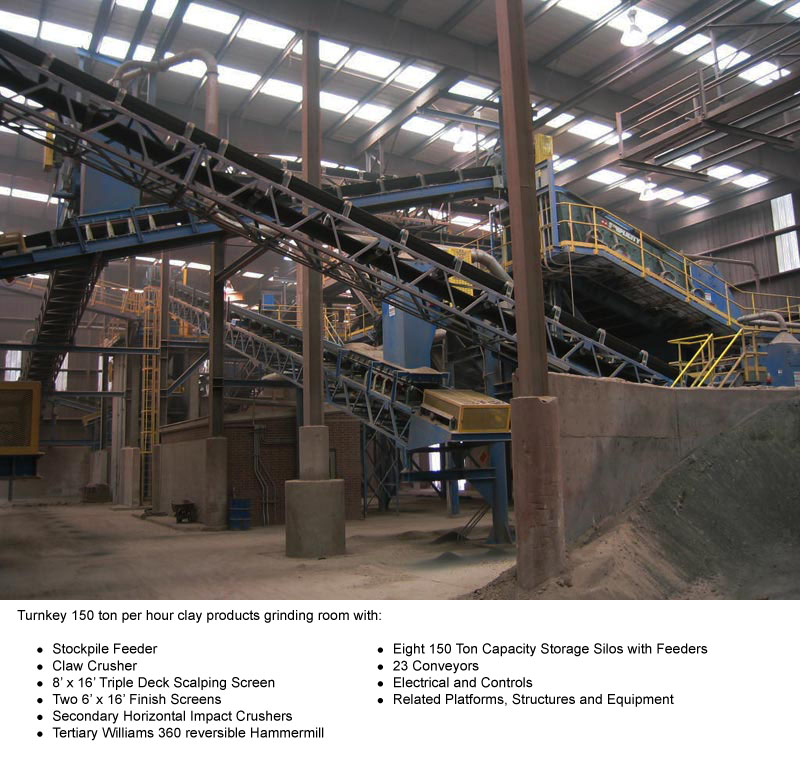

Turnkey 150 ton per hour clay
products grinding room with: |
-
Stockpile Feeder
-
Claw
Crusher
-
8’ x
16’ Triple Deck Scalping
Screen
-
Two
6’ x 16’ Finish Screens
-
Secondary Horizontal Impact
Crushers
-
Tertiary Williams 360
reversible Hammermill
-
Eight 150 Ton Capacity
Storage Silos with Feeders
-
23
Conveyors
-
Electrical and Controls
-
Related Platforms,
Structures and Equipment
|
|
|
View of a clay products grinding
room at a brick plant |
|
|
|
|

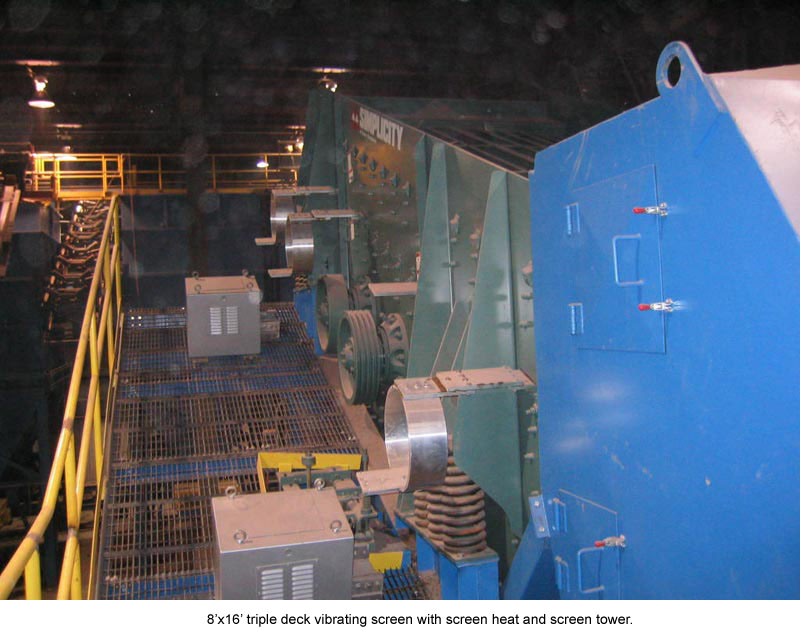

8’x16’ triple deck vibrating
screen with screen heat and
screen tower. |
|
|
|
|
Two 6’ x 16’ finish screens with
screen heat and screen tower. |
|
|
|
|
Overhead, covered and 30" wide x
approximately 250' long,
troughed transfer conveyor set
on mono columns to give
unobstructed access below. |
|
|
|
|

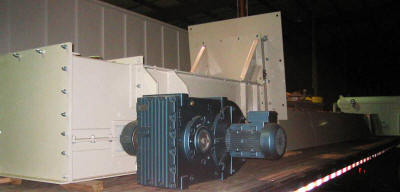

Stockpile reclaimer ready to
ship to a sand plant. |
|
|
|
|

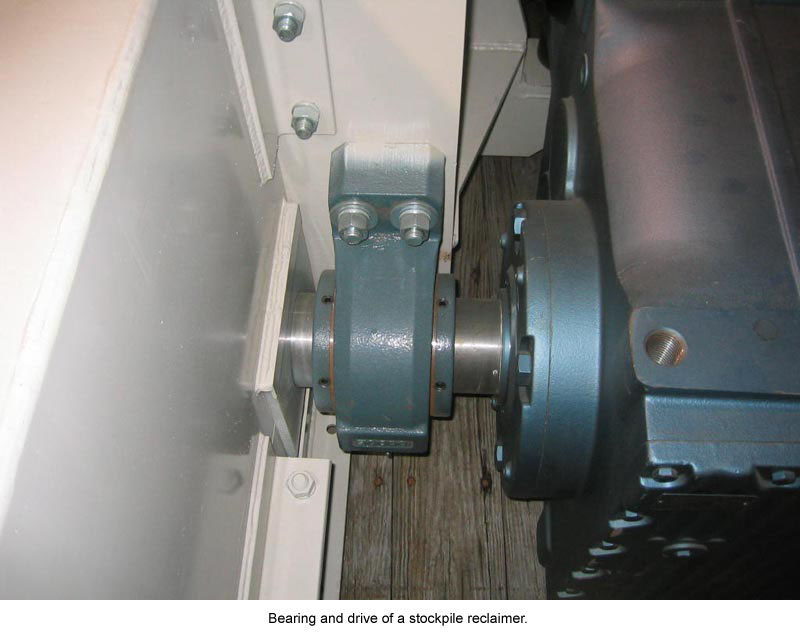

Bearing and drive of a stockpile
reclaimer. |
|
|
|
|

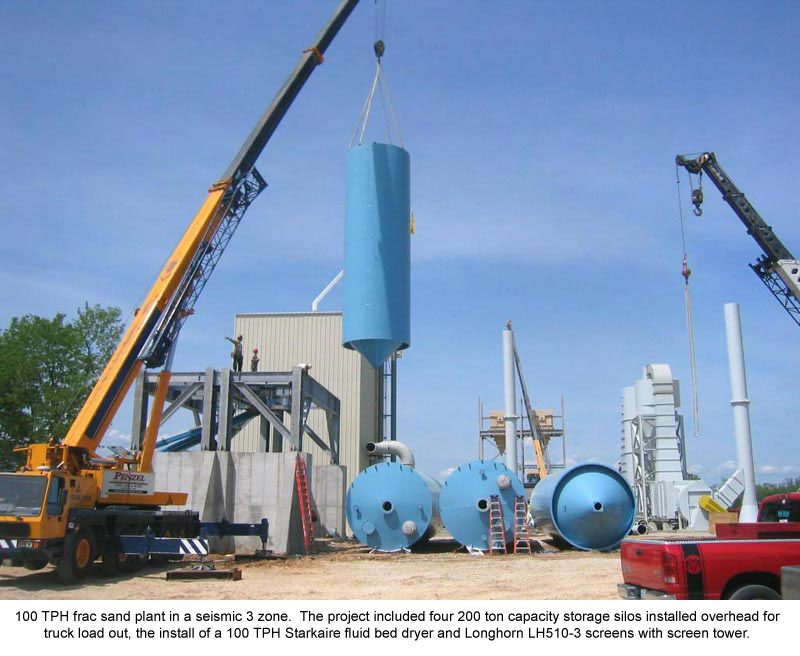

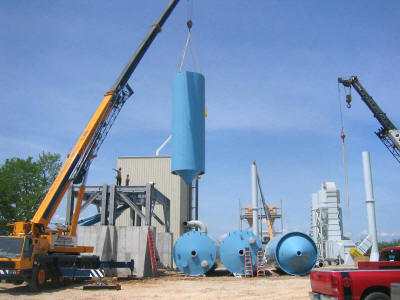

100 TPH frac sand plant in a
seismic 3 zone. The
project included four 200 ton
capacity storage silos installed
overhead for truck load out, the
install of a 100 TPH Starkaire
fluid bed dryer and
LH510-3 screens with screen
tower. |
|
|
|
|

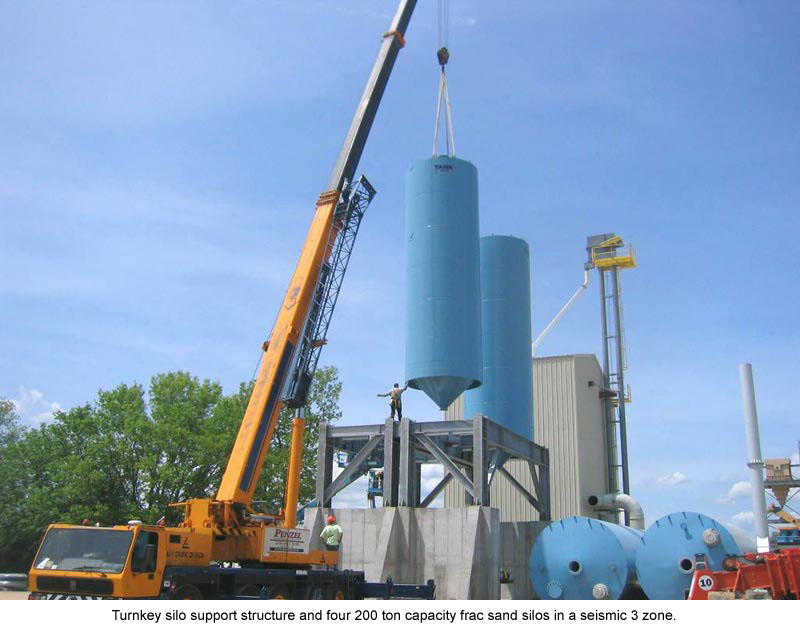

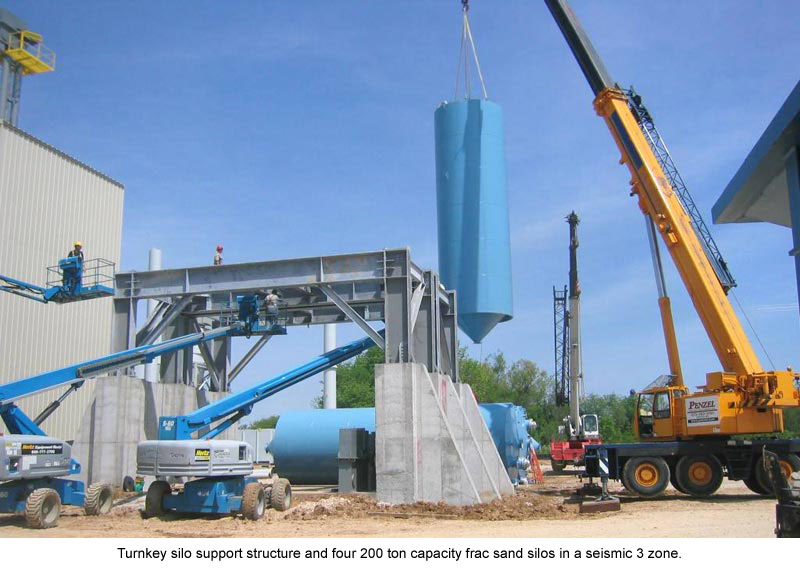

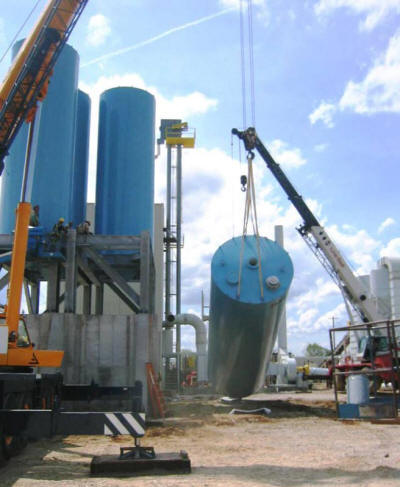

Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone. |
|
|
|
|

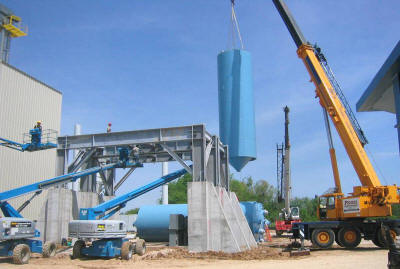

Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone. |
|
|
|
|

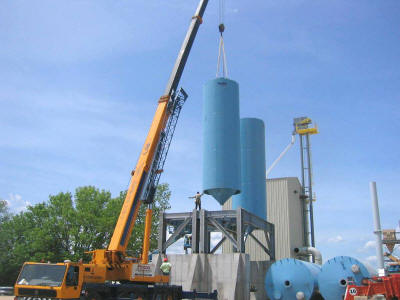

Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone. |
|
|
|
|

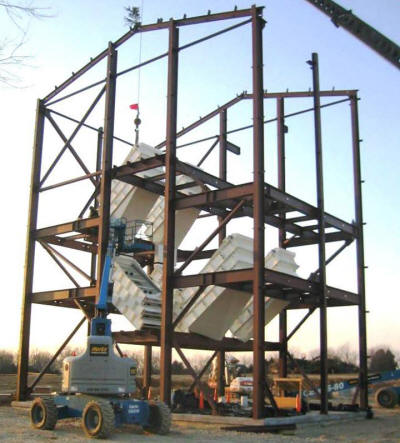

Four, triple 5’x10’ over triple
5’x10’ screens and related
equipment in a custom screen
tower structure for a frac sand
plant. |
|
|
|
|
|
Four, triple 5’x10’ over triple
5’x10’ screens and related
equipment in a custom screen
tower structure for a frac sand
plant.
|
|
|
|
|
Four, triple 5’x10’ over triple
5’x10’ screens and related
equipment in a custom screen
tower structure for a frac sand
plant. |
|
|
|
|
Screen tower structure
enclosure. |
|
|
|
|

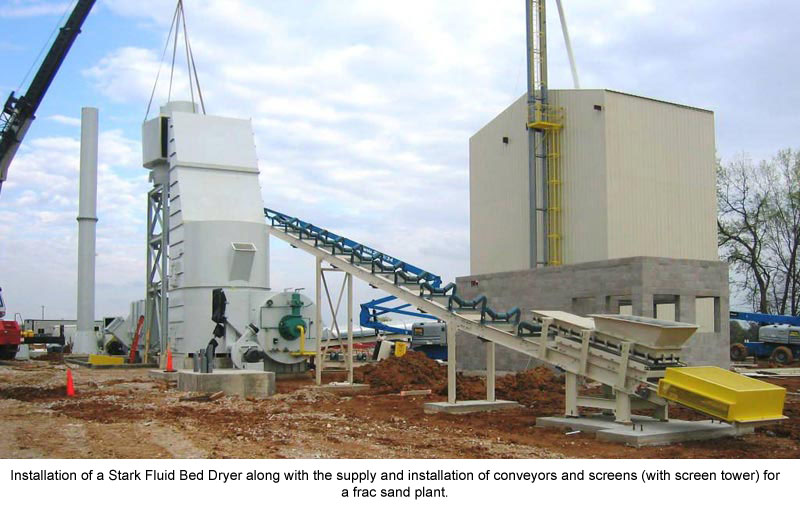

Installation of a Stark Fluid
Bed Dryer along with the supply
and installation of conveyors
and screens (with screen tower)
for a frac sand plant. |
|
|
|
|
Inclined trough belt conveyor
feeding into a Stark Fluid Bed
Dryer at a frac sand plant. |
|
|
|
|

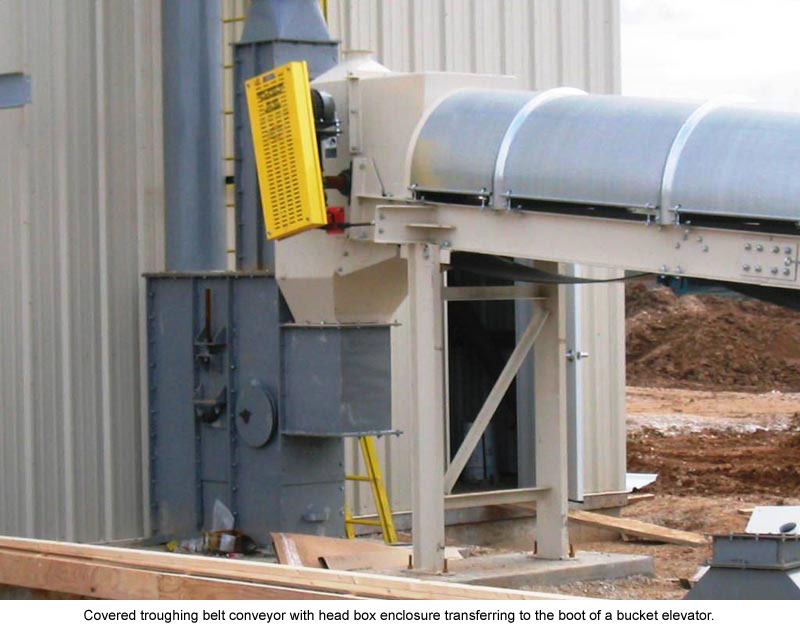

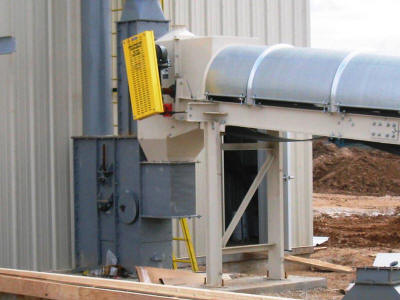

Covered troughing belt conveyor
with head box enclosure
transferring to the boot of a
bucket elevator. |
|
|
|
|
 |
|

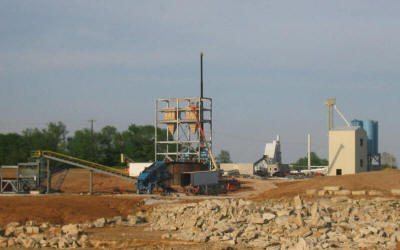

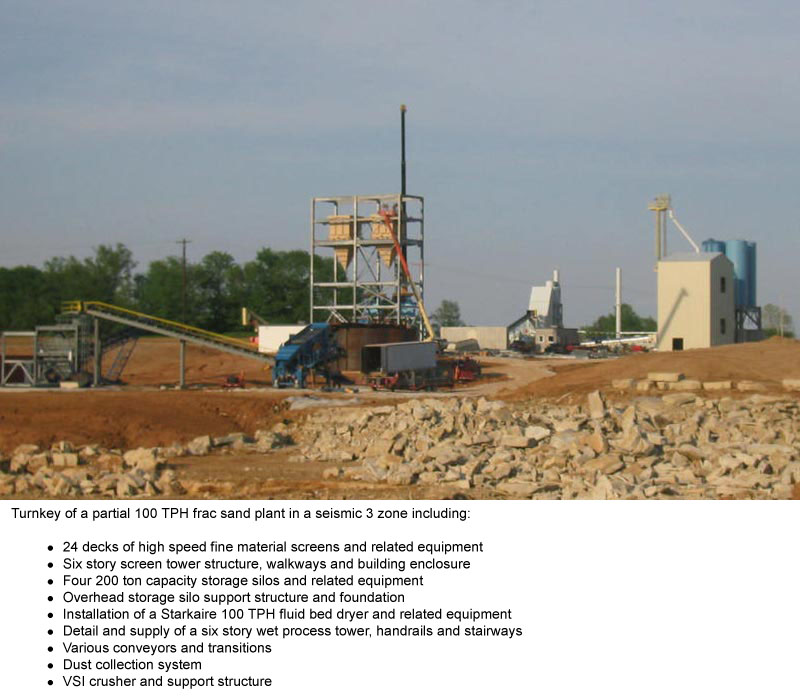

Turnkey of a partial 100 TPH
frac sand plant in a seismic 3
zone including: |
-
24
decks of high speed fine
material screens and related
equipment
-
Six
story screen tower
structure, walkways and
building enclosure
-
Four
200 ton capacity storage
silos and related equipment
-
Overhead storage silo
support structure and
foundation
-
Installation of a Starkaire
100 TPH fluid bed dryer and
related equipment
-
Detail and supply of a six
story wet process tower,
handrails and stairways
-
Various conveyors and
transitions
-
Dust
collection system
-
VSI
crusher and support
structure
|
|
|
