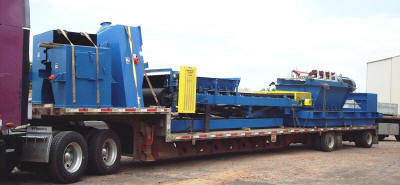

Cato supplied prefabricated
conveyors, head boxes, hoppers
and chutes for a crusher change
out at a brick manufacturing
plant. |
|
|
 |
Cato supplied crusher support
platform, motor mount, 400 Hp
motor, discharge hopper and
impact feeder for processing
clay at a brick manufacturing
plant. |
|
|
|
|

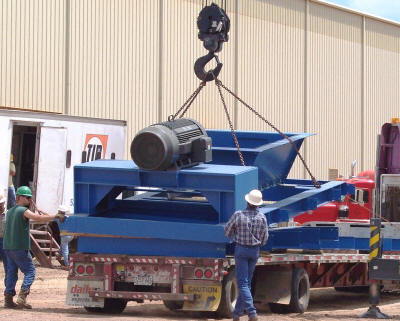

Prefabricated crusher platform,
motor mount and 400 Hp motor. |
|
|
|
|

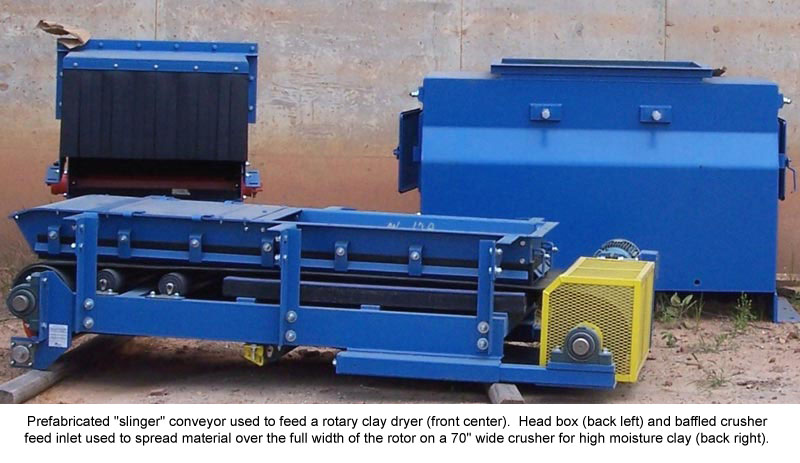

Prefabricated "slinger" conveyor
used to feed a rotary clay dryer
(front center). Head box
(back left) and baffled crusher
feed inlet used to spread
material over the full width of
the rotor on a 70" wide crusher
for high moisture clay (back
right). |
|
|
|
|
Williams 370 Traveling Breaker
Plate Mill to be installed to
process + 20% moisture
clay. |
|
|
|
|
Bypass feed to a rotary dryer
for heavy clay in the brick
industry. |
|
|
|
|

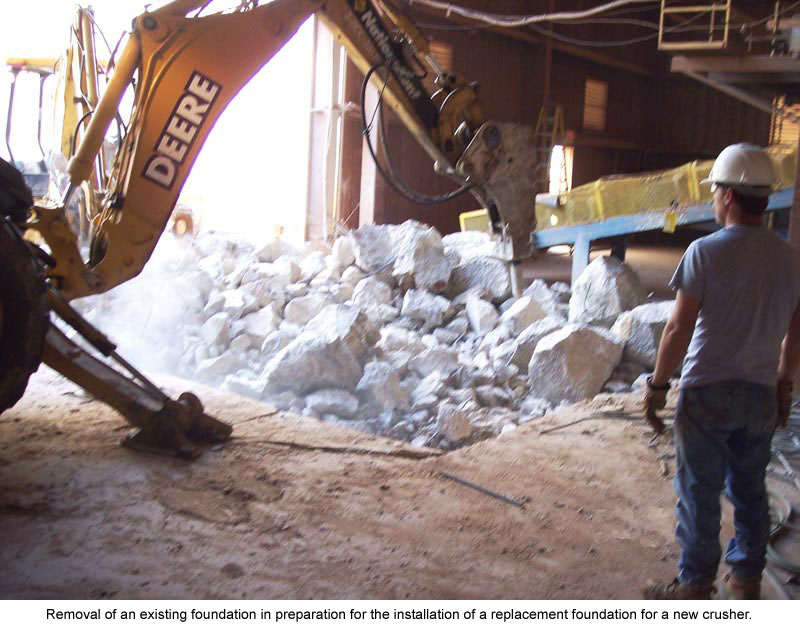

Removal of an existing
foundation in preparation for
the installation of a
replacement foundation for a new
crusher. |
|
|
|
|
Foundation preparation for a new
crusher installation in an
existing clay processing plant. |
|
|
|
|
Building an access road in
preparation of handling a heavy
crusher installation where a
special rigger forklift had to
be utilized due to the limited
space which did not allow access
by a crane. |
|
|
|
|
Precast structural steel
embedded plinths for a crusher
change out on a project where
the timeline prohibited the use
of cast in place walls. |
|
|
|
|

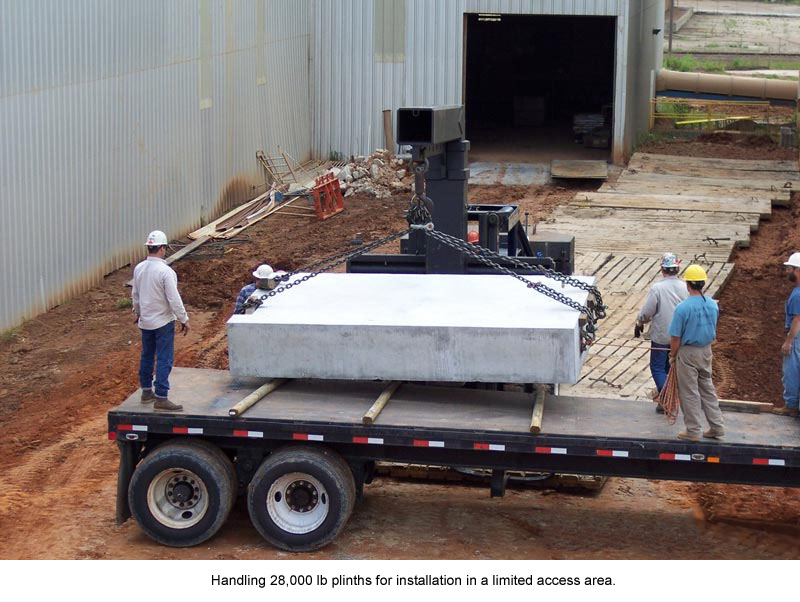

Handling 28,000 lb plinths for
installation in a limited access
area. |
|
|
|
|

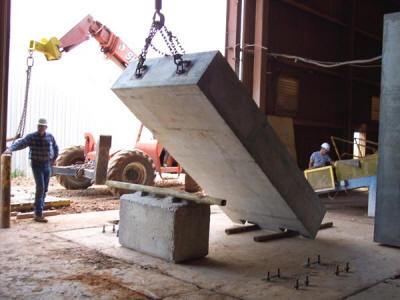

Installation of four 28,000 lb
precast concrete plinths. |
|
|
|
|

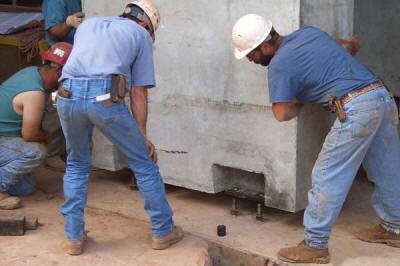

Installation and leveling of a
precast concrete steel
structure. |
|
|
|
|

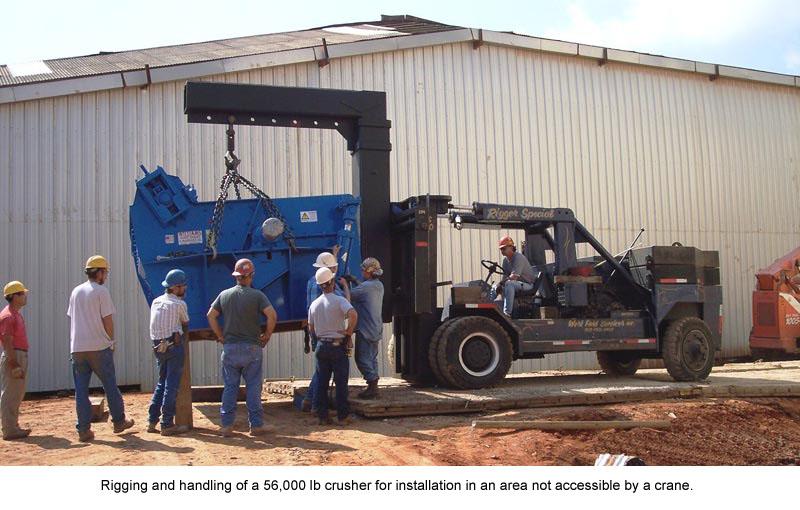

Rigging and handling of a 56,000
lb crusher for installation in
an area not accessible by a
crane. |
|
|
|
|

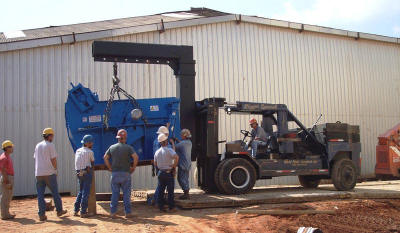

Rigging and handling of a 56,000
lb crusher for installation in
an area not accessible by a
crane. |
|
|
|
|

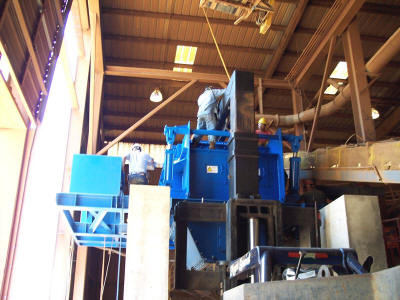

Setting a Williams 370 Traveling
Breaker Plate TBP Mill on its
crusher platform. |
|
|
|
|
Setting a Williams 370 Traveling
Breaker Plate TBP Mill on its
crusher platform |
|
|
