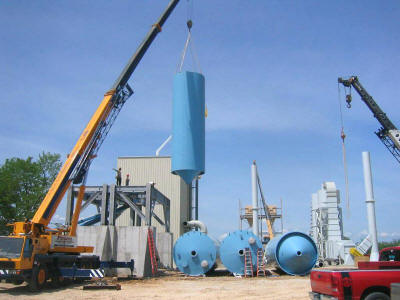

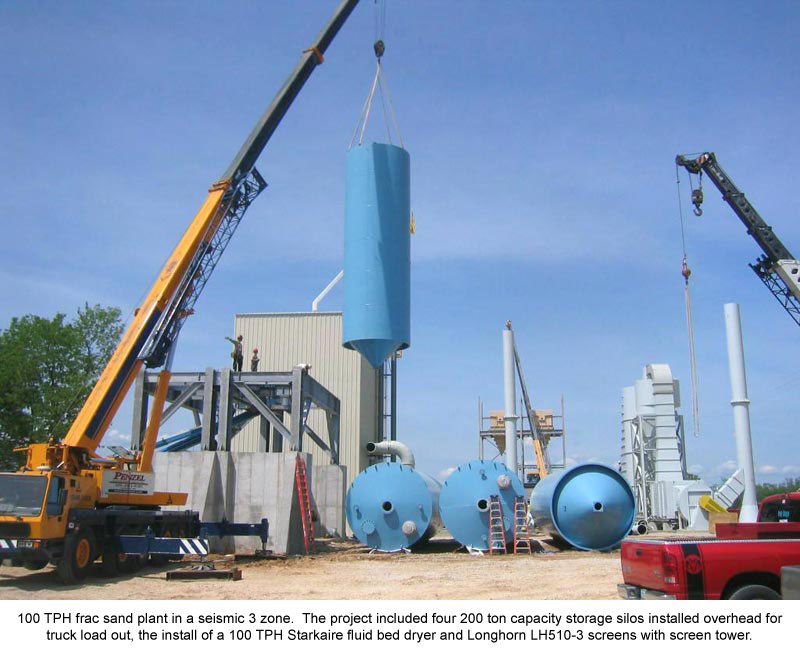

100 TPH frac sand plant in a
seismic 3 zone. The
project included four 200 ton
capacity storage silos installed
overhead for truck load out, the
install of a 100 TPH Starkaire
fluid bed dryer and
LH510-3 screens with screen
tower.

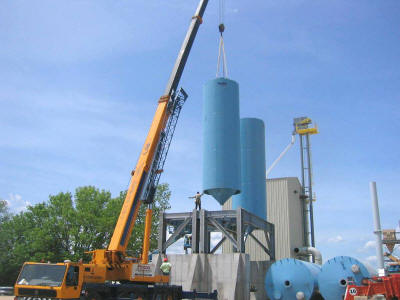

Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone.
Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone.
Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone.
Turnkey silo support structure
and four 200 ton capacity frac
sand silos in a seismic 3 zone.

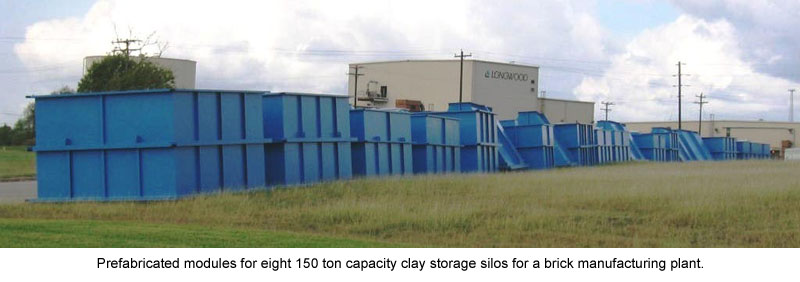

Prefabricated modules for eight
150 ton capacity clay storage
silos for a brick manufacturing
plant.

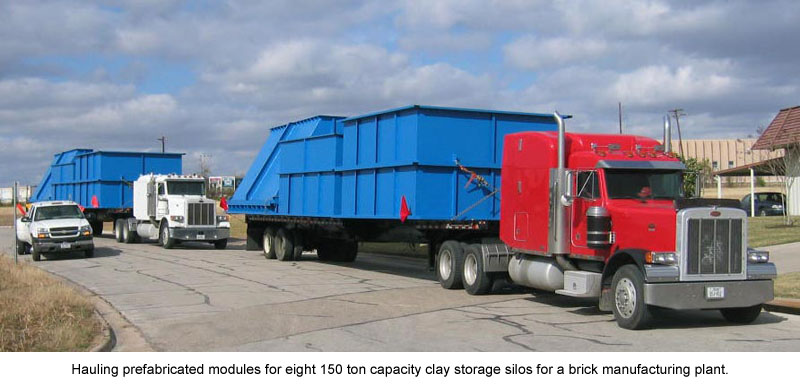

Hauling prefabricated modules
for eight 150 ton capacity clay
storage silos for a brick
manufacturing plant.
Eight 150 ton
capacity clay product storage silos with
integral 42” wide belt feeders feeding a
gathering conveyor.

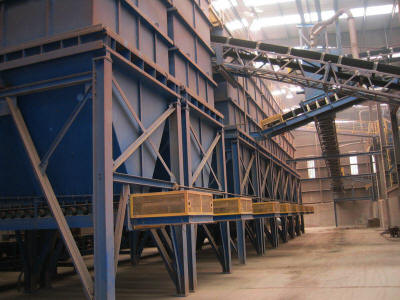

Back view of eight 150 ton
capacity clay product storage
silos with integral 42” wide
belt feeders feeding a gathering
conveyor.

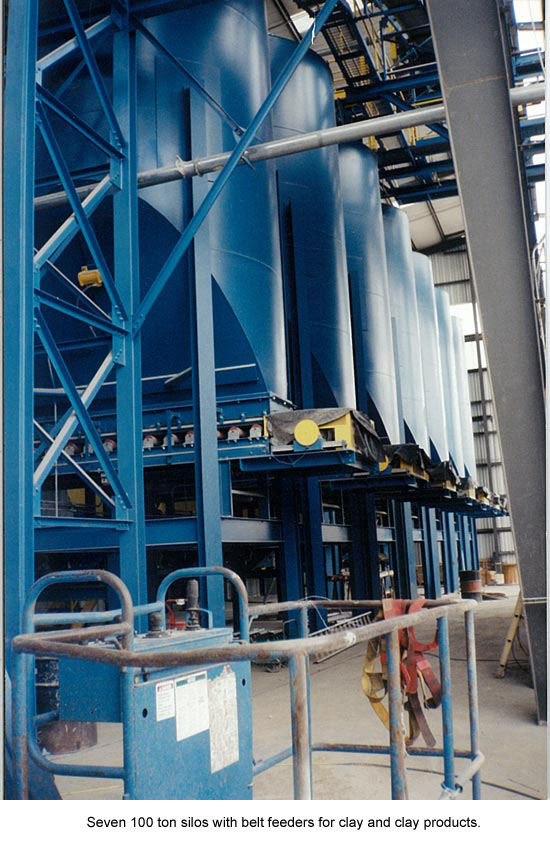

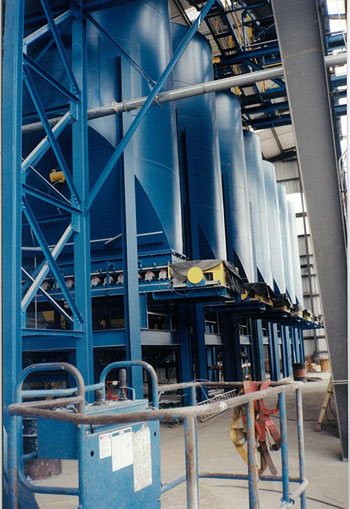

Seven 100 ton silos with belt
feeders for clay and clay
products.

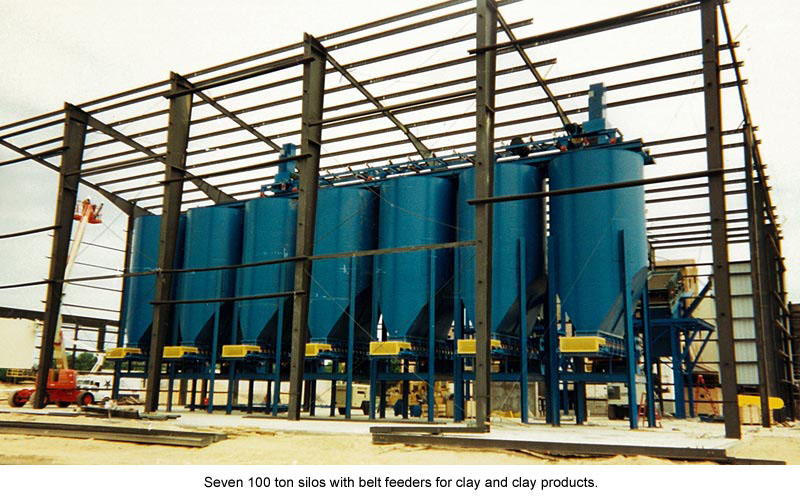

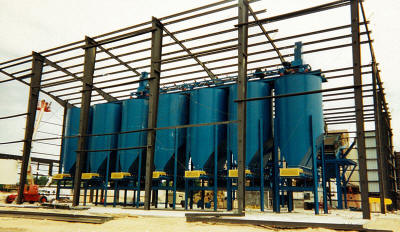

Seven 100 ton silos with belt
feeders for clay and clay products.

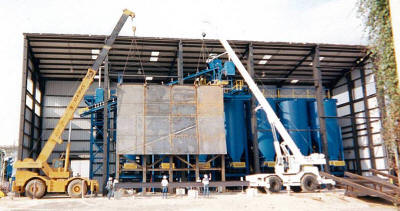

Erecting a 40’ wide x 40’ tall
field welded section of a 250
ton capacity clay storage bin.
250 ton storage bin with
apron feeder discharge for clay.
