Bypass feed to a rotary dryer for heavy clay in the brick industry.

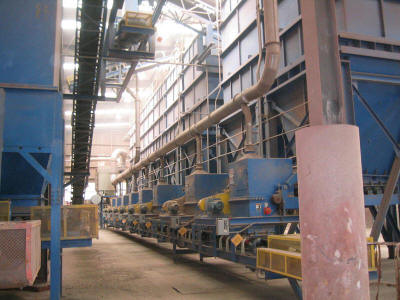

Eight 150 ton capacity clay product storage silos with integral 42” wide belt feeders feeding a gathering conveyor.

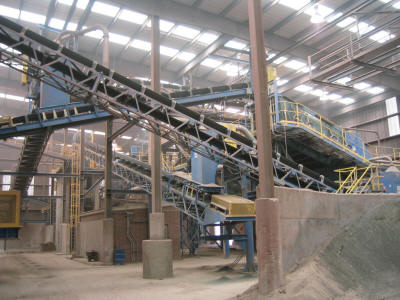

Turnkey clay grinding plant with multiple crushers, screens, conveyors and storage silos.  It was designed to fit within the confines of an existing building to service two clay brick manufacturing plants simultaneously.

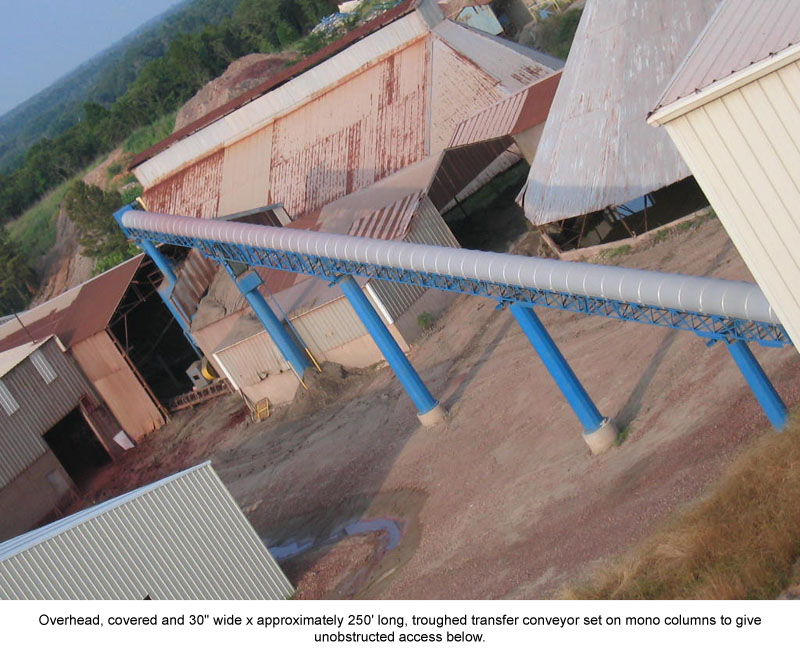

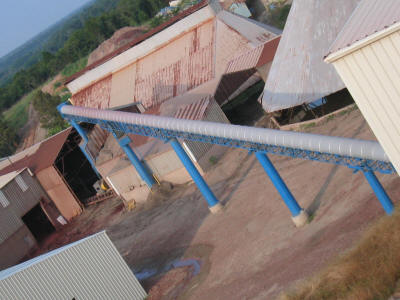

Overhead, covered and 30" wide x approximately 250' long, troughed transfer conveyor set on mono columns to give unobstructed access below.

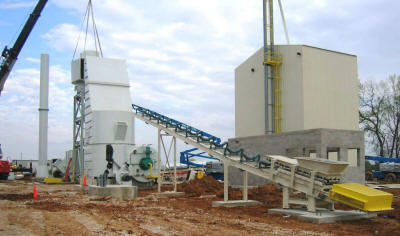

 Installation of a Stark Fluid Bed Dryer along with the supply and installation of conveyors and screens (with screen tower) for a frac sand plant.

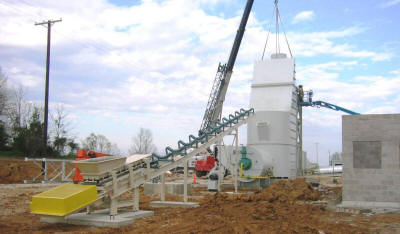

Inclined trough belt conveyor feeding into a Stark Fluid Bed Dryer at a frac sand plant.

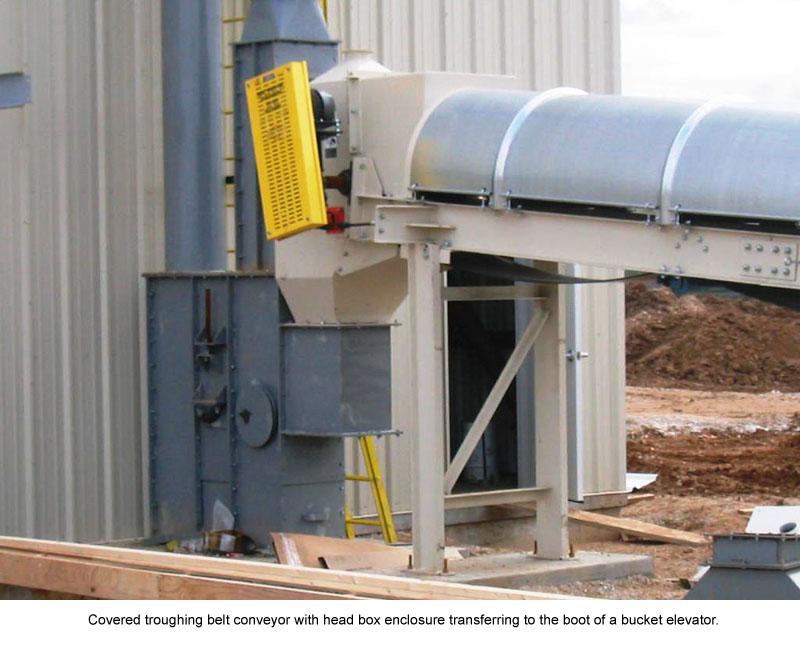

Covered troughing belt conveyor with head box enclosure transferring to the boot of a bucket elevator.

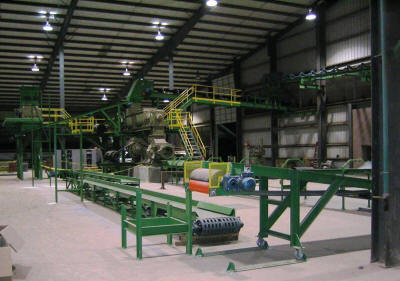

 Clay extrusion line scrap handling slider bed belt conveyors.


Slider bed belt conveyors handling scrap material from a clay brick extrusion line.


Eight 42” wide front drive belt feeders to be installed under eight 150 ton capacity clay storage silos.
